Level-3 DC charger:
Wall mounted: 7kw-80kw
One standing: 60kw-480kw
DC dispenser: 360kw-960kw
-

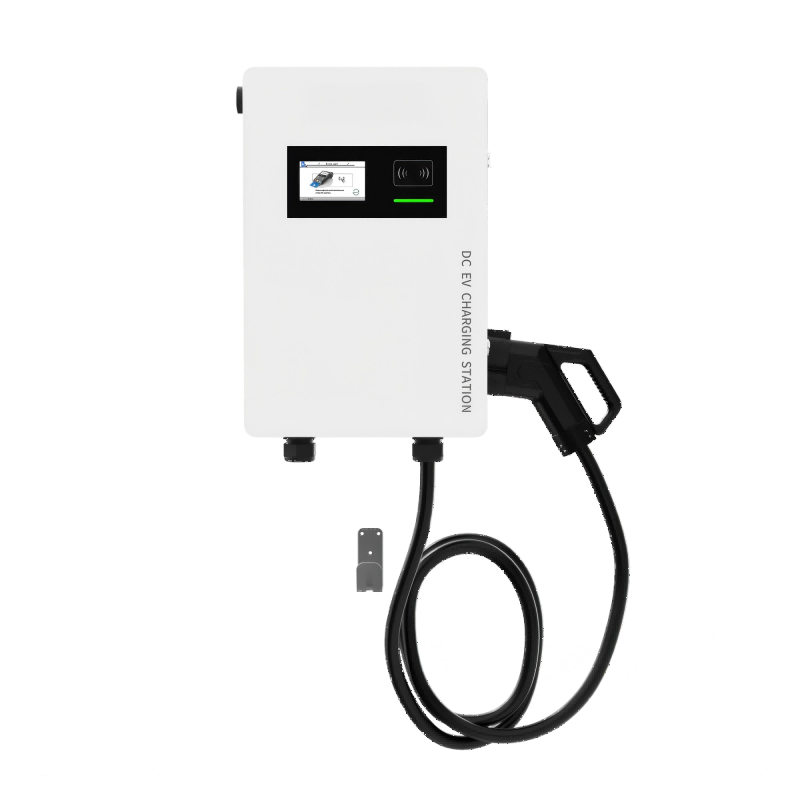

Level 3 charging DC fast wall & pedestal mounted charger
Input voltage: 480VAC±15%, 3-Phase+N+PE
Input frequency: 45-65±1Hz
Charging cable length: 18ft
Display: 4.3 inch touch screen
Startup method: RFID Card/QR code
Connector types: CCS1/CCS2/Chademo
Network: Ethernet or WiFi
Output voltage: 200 – 1000 VDC
Maximum output current: 20A/80A/100A/125A/200A connector
Output power: 7kW-80KW.
Cooling mode: Air cooling
Protection: NEMA Type3(IP54) -

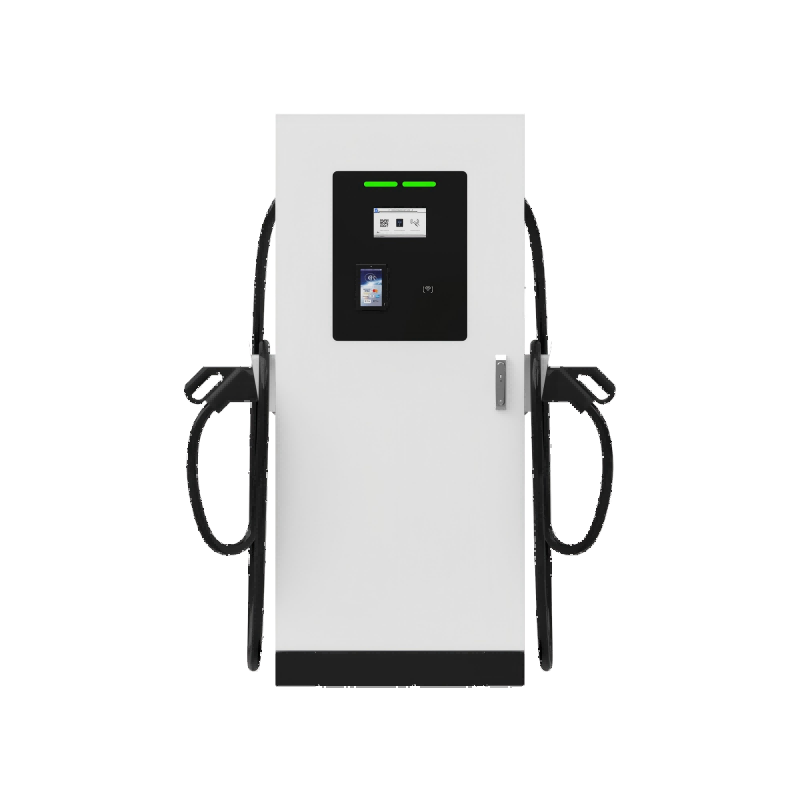

Level-3 charger 60KW-480KW DCFC EV Charger
Input voltage: 480VAC±15%, 3-Phase+N+PE
Input frequency: 45-65±1Hz
Charging cable length: 18ft
Display: 10.1 inch touch screen
Startup method: RFID Card/QR code
Connector types: CCS1 + CCS1
Network: Ethernet; WiFi or 4G
Output voltage: 200 – 1000 VDC
Maximum output current: 200A/250A/300A/350A connector
Output power: 60-480 kW available.
Cooling mode: Air cooling/liquid cooling
Protection: NEMA Type3(IP54)
2 years warranty
